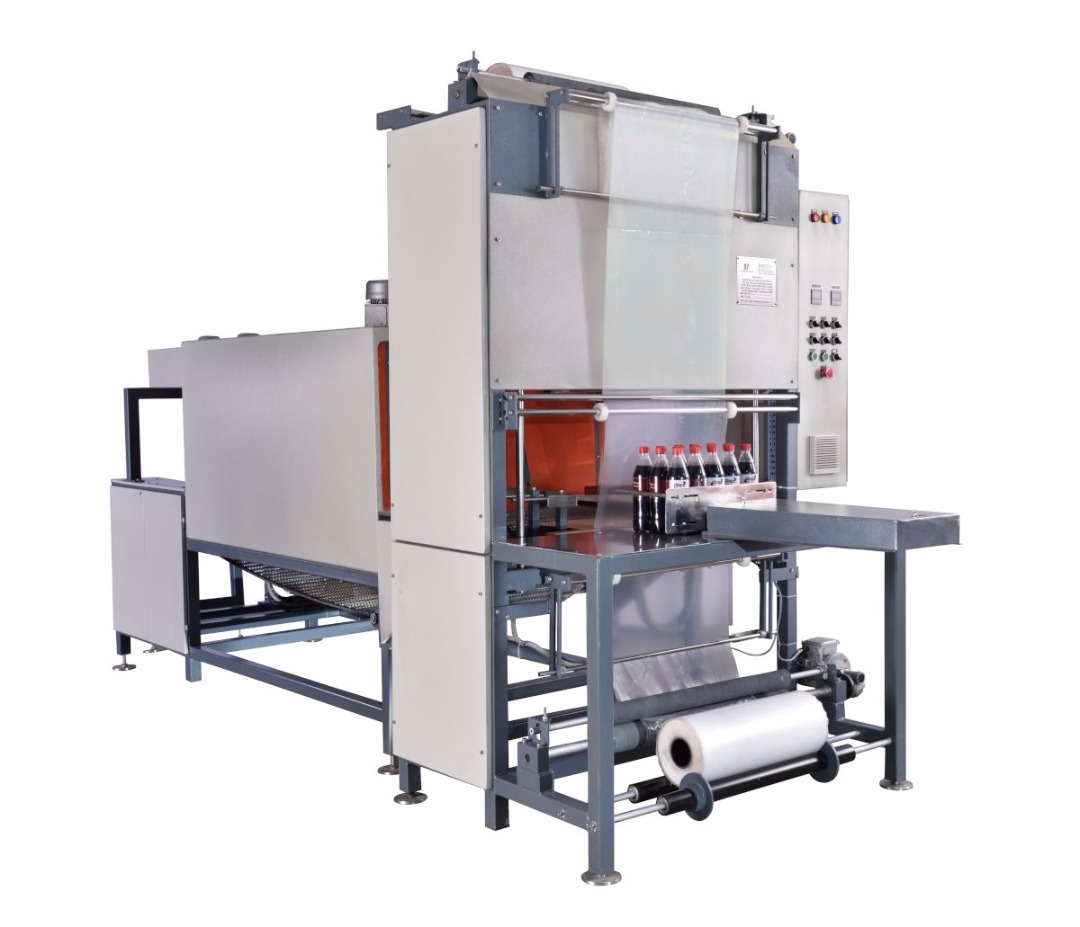

Semi Automatic Web Sealer & Shrink Tunnel
Semi Automatic Web Sealer Machine are used for packing Bottles together for Material handling purpose. It can be packed in 6 – 24 Bottles in one case as per your requirement. The Machine consists of Heavy Duty frame in MS painted structure, Teflon Coated Special Structure Hot Knife Sealing System, Infeed customized as per customer’s requirement. The Machine is known as Web Sealing Machine, Web Sealer with Shrink Tunnel.
FEATURES
Compact in Size & Design
Most parts are made up of Heavy Duty Mild Steel.
Easy in operation
Low Power consumption
MAIN TECHNICAL SPECIFICATIONS
SEALING DIMENSION : 24” (Inch) sealing arm for front sealer.
POWER CONSUMPTION : 1 KW
MACHINE OUTPUT : 5 To 6 Packs/Minute
INFEED CONVEYOR : This frame is in square pipe.
SEALING KNIFE : Continuously heating Teflon Coated Sealing Knife 16” Long with film Guard
PNEMATICS PARTS : Cylinder, Solenoid Valve, FRL, Flow Control Valve, Tubing
HEATER SPECIFICATION : 1 KW Tubular Heater for fast heating.
CONTROL PANEL : In this Panel all Contactors are TELEMACHINC make. All Proxy switch, Rotary switch & Photo Cell With SELECTRON Timer, Digital Timer & Digital Temperature Controller ELECTROQUEP make AC Drive,
TOP UNWINDING : Auto Unwinding with Pneumatic Cylinders.
FILM CARRAIGE ROLLER : Fully Stainless Steel Material
AIR CONSUPMTION : Constant Air Pressure 100 PSI
CONVEYOR BELT : MS Plated Chain CONVEYOR.
MOTOR : 1 HP AC Motor
TUNNEL OPENING : 24” W x 18” H
HEATER SPECIFICATION : 600mm Long 1 KW Stainless Steel tube fined heater.
TOTAL DIAMENTION : 3350mm (L) x 825mm (W) x 1900mm (H)
