24 BPM

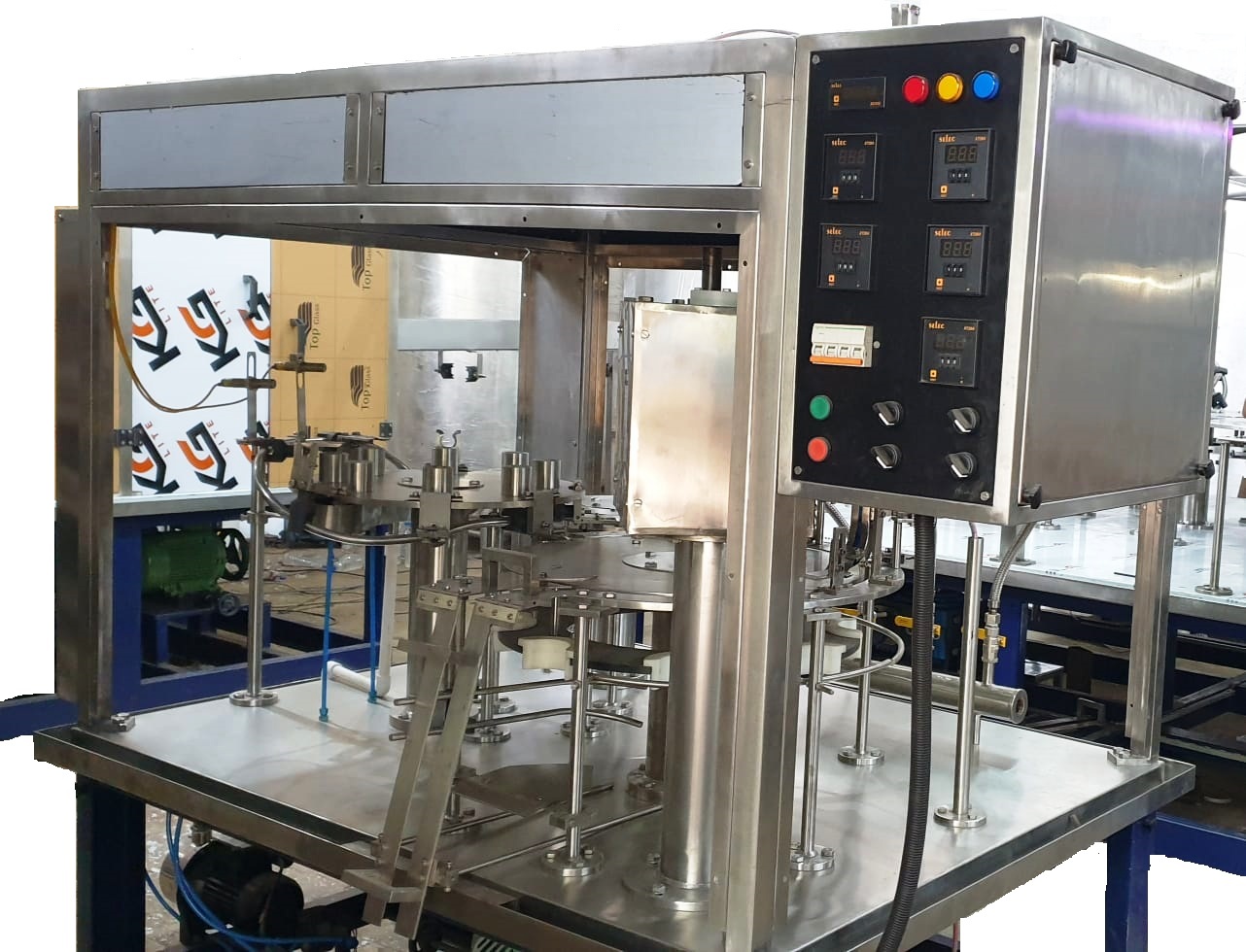

Automatic Rinsing, Filling & Capping Machine 24 BPM
Capping Machine Manufacturer in Mumbai, This filling line includes combination of Mechanical & Pneumatic operation, with Mechanical Intermittent Rotation for Rinsing, Filling & Capping. The production capacity of this line reaches 1440 Bottles/hour at 1000 ml.
FEATURES
Capping Machine Manufacturer in Mumbai
Compact in size, Rotary design
Most parts are made of Stainless Steel
Multi Station with Time pressure Filling
NO bottle NO Rinse NO bottle NO fill system provided
Compact Electrical panel with Infeed Air Conveyor and Outfeed Slat belt Conveyor
Easy and quick change over system provided for different volume of Filling
MAIN TECHNICAL SPECIFICATIONS
Production Capacity : 1440 bottles/hour (at 1000 ml)
Washing Head : 02
Filling Station : 03
Capping Station : 01
Filling Accuracy : ± 2 %
Compressed Air : 3 – 4 CFM at 6 kg/cm3
Power Consumption : 3.5 H.P
Gross Weight (kg) : 1500
Dimensions (L x W x H) (mm) : 1300 x 1600 x 2400
