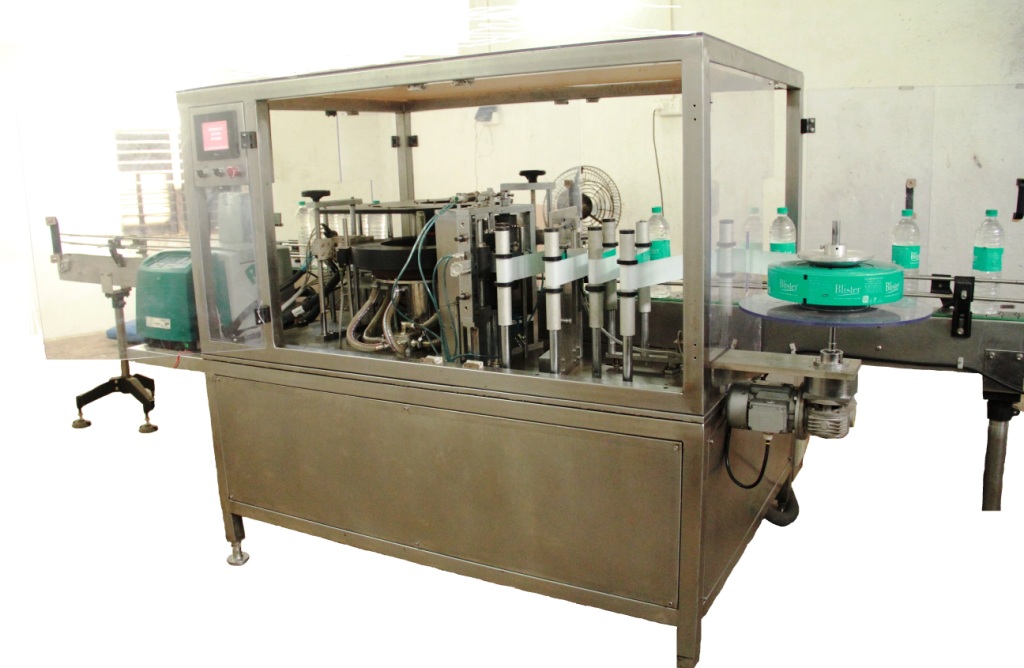

Hotmelt BOPP Labeller for Pet Bottles
Automatic Hot Melt Bopp Labellar for Pet Bottles
Product : PET Round Bottles
Range of Bottles : 500 ml – 2000 ml (Sleeve Height up to 54mm)
Capacity : 60 – 90 BPM / 120 – 150 BPM in 1000 ml.
Sleeve Cut length : 50 mm – 320 mm
Cut Length Accuracy : +/- 0.5 mm
Size of Bottle : Length 50 mm (min) – 300 mm (max) Dia. 40mm (min) – 100 mm (max)
Maximum Roll Dia : 450 mm
Inner Dia of Core : 6 inch
MACHINE SPECIFICATION
Machine Construction is Stainless Steel 304.
Hot-Melt System: VALCO MELTON make
Vacuum System
With compact PLC Control System.
No Bottle, No Label Mechanism provided and avoids any wastage of labels.
Fully synchronized AC Inverted Drives.
Overall Labeling Speed is controlled by a Variable Speed Drive.
CONVEYOR DIMENSION
Conveyor Height: Adjustable 850 mm. ±50 mm.
Conveyor Length: Infeed Conveyor 2.5 meter & Outfeed Conveyor 2.5 meter (Infeed to discharge) – 5.00 meter Length in Total.
TECHINICAL DETAILS
Automatic BOPP Labelling Machine manufacturer in Mumbai
Dimension of the Machine: 4.0 meter (L) X 1.2 meter (W) X 2.0 meter (H) Approx.
Frame Structure and Side cover will be of S.S. 304 material rest parts & contact parts will be also in SS-304. (Certain Internal Mechanism of the Machine, such as Cam, Chain, and Sprockets etc that will be internal & not exposed will be of M.S.)
0.25 HP Geared Motor for Unwind Unit.
Rotary Turret for Label holding attachment for Labeling.
Servomotor of 2 KW for NIP Roller.
1 HP Motor coupled with Gear Box for Main Drive.
Hot Melt Glue Dispenser Unit – 1 No. of “VALCO MELTON” make Vacuum Pump will be of 3 HP.
S.S Infeed & S.S Outfeed Conveyor provided.
0.5 HP Geared Motor of Hindustan make or Equivalent – 1 No. (For Conveyor)
0.5 HP Frequency Drive – Delta make or Equivalent — 1 No.
Bearing – 4 Nos. for each Conveyor.
Chain Guard – 1 No.
Chain (1/2) inch – 1 No.
Chain Sprocket – 2 Nos. for each Conveyor.
Motor mounting plate.
Frame Leg – 4 Nos.
Sensors used will be of “P&F” make.
P.L.C. of “Delta” Make or Equivalent.
Pneumatics of “SMC” Make or Equivalent.
Electrical Hardware’s of L&T, Siemens, or of Standard Make.
Massage Belt for Bottle Rotation.
