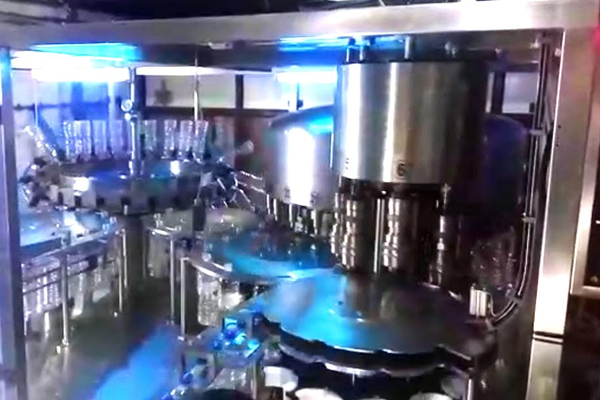

Automatic Rinsing Filling & Capping Machine 120 Bpm
This Filling Line includes 24 Head Auto Washing System, 24 Head Auto Filling System with 24 Special purpose Filling Valve & 8 Head Capping Unit which are connected by Motor driven Air Conveyor system provided in line for Filling Pure / Packaged Mineral Water, Juice, Oil etc. into PET Bottles up to 2000 ml. The production capacities of this line reach 7200 – 10,000 bottles/hour at 1000 ml. (if provided with good quality blown PET Bottles and CAP)
FEATURES
Automatic Rinsing Capping Machine Manufacturer in Mumbai
Beautiful Outlook & Sturdy Design, Easy operation, Compact Size & Convenient maintenance
The Machine is Rotary in Design with Rinsing, Filling & Capping in one unit for all kind of Liquid Filling
Contact parts are made of high grade Stainless Steel with compact Electrical Panel with reputed brand provided
The machine has No Bottle No Rinsing, No Filling & No Capping Auto System.
No Pneumatic operation, No Timer, No Sensor system provided. It is Fully Mechanically operated Machine
Special design of Filling Valve gives accurate Filling and Speed
Provided with compact Cap Feeder for Capping with CAP AIR Elevator
This machine is also suitable for Hot Filling, Juice Filling & Oil Filling provided by changing few Machine parts.
Automatic Rinsing Filling & Capping Machine 120 BPM
This Filling Line includes 24 Head Auto Washing System, 24 Head Auto Filling System with 24 Special purpose Filling Valve & 8 Head Capping Unit which are connected by Motor driven Air Conveyor system provided in line for Filling Pure / Packaged Mineral Water, Juice, Oil etc. into PET Bottles up to 2000 ml. The production capacities of this line reach 7200 – 10,000 bottles/hour at 1000 ml. (if provided with good quality blown PET Bottles and CAP)
FEATURES
Beautiful Outlook & Sturdy Design, Easy operation, Compact Size & Convenient maintenance
The Machine is Rotary in Design with Rinsing, Filling & Capping in one unit for all kind of Liquid Filling
Contact parts are made of high grade Stainless Steel with compact Electrical Panel with reputed brand provided
The machine has No Bottle No Rinsing, No Filling & No Capping Auto System.
No Pneumatic operation, No Timer, No Sensor system provided. It is Fully Mechanically operated Machine
Special design of Filling Valve gives accurate Filling and Speed
Provided with compact Cap Feeder for Capping with CAP AIR Elevator
This machine is also suitable for Hot Filling, Juice Filling & Oil Filling provided by changing few Machine parts.
MAIN TECHNICAL SPECIFICATIONS
Production Capacity : 7200 bottles/hour (at 1000 ml) Running Speed (9600 BPH of 1000 ml Bottles and 10800 BPH of 500 ml Bottles)
Washing Head : 24
Filling Head : 24
Capping Head : 08
Filling Accuracy : ± 2 %
Compressed Air : For CAP holding Cylinder at 2 CFM
Power Consumption : ≤ 8 hp
Gross Weight (kg) : 4500
Dimensions (LxWxH) (mm) : 3000 x 2400 x 2400
